FertiMAX PRO

Fertilizer applicator gang for sugar cane

FertiMAX

Fertilizer equipment incorporating fertilizer for sugar cane.


Main features

FertiMAX PRO fertilizer for sugar cane with 4 FertiMAX gangs (optional 3 and/or 2), plastic fertilizer hopper, distribution system with auger and three dosage control options.


Simple and agile equipment, 3-point hitch to the tractor, requiring low power. Suitable for all solid fertilizers, incorporates and maintains the fertilizer protected even with a high trash blanket on the surface.


Protect the fertilizer

The depth achieved by the equipment guarantees optimal protection, in such a way that the fertilizer is incorporated into the soil avoiding its volatilization, also protected from fires whilst starting its effect immediately, being an optimal option for the use of urea.

Versatile

- Working capacity with a wide speed range.
- Adjust to different space configurations.
- More than one dosage thread option.



Possible spacings with 4 bodies

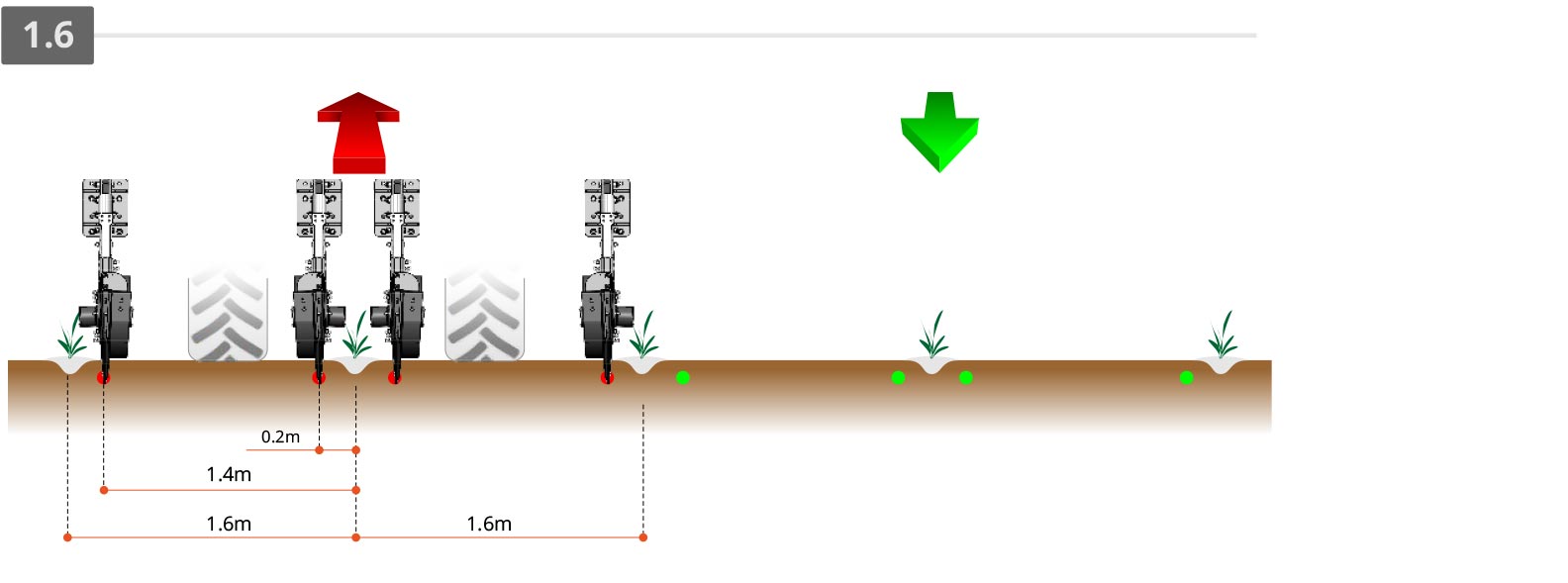

4 bodies - Single line - Espaçamento 1.6m - Chassis 3m
Duas linhas por passada - Fertilizante nas duas laterais da soqueira.

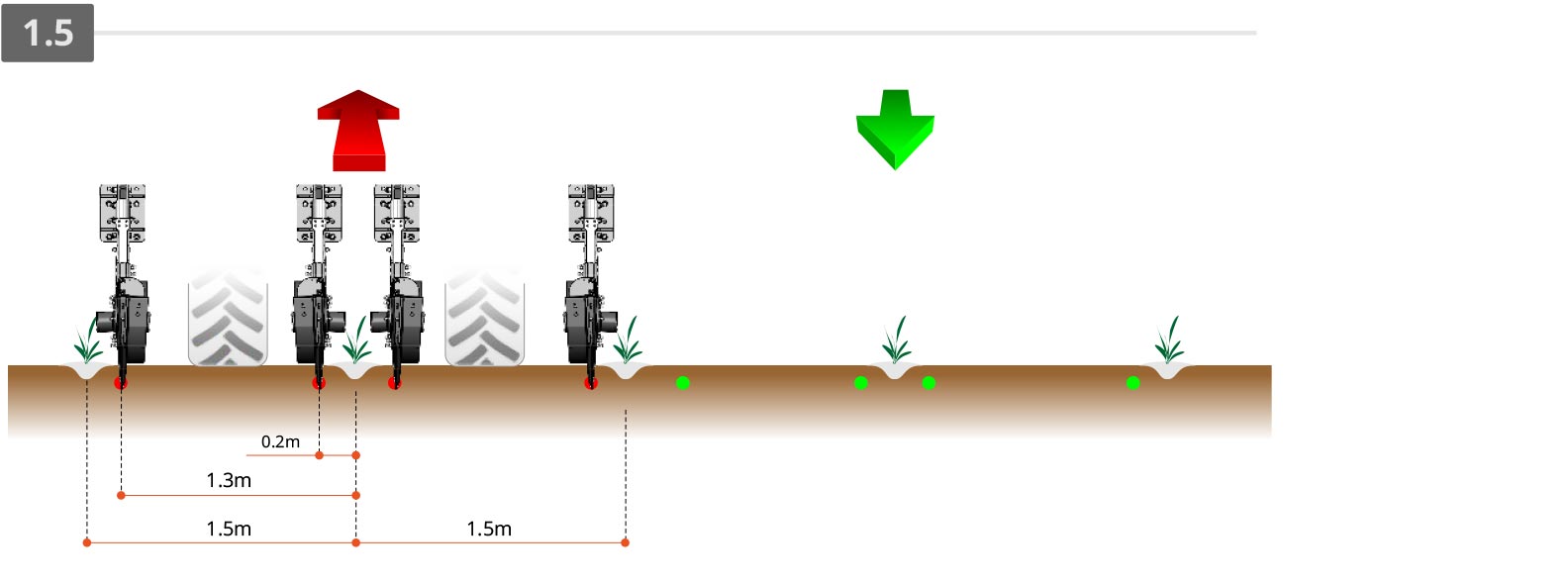

4 bodies - Single line - Espaçamento 1.5m - Chassis 3m
Duas linhas por passada - Fertilizante nas duas laterais da soqueira.

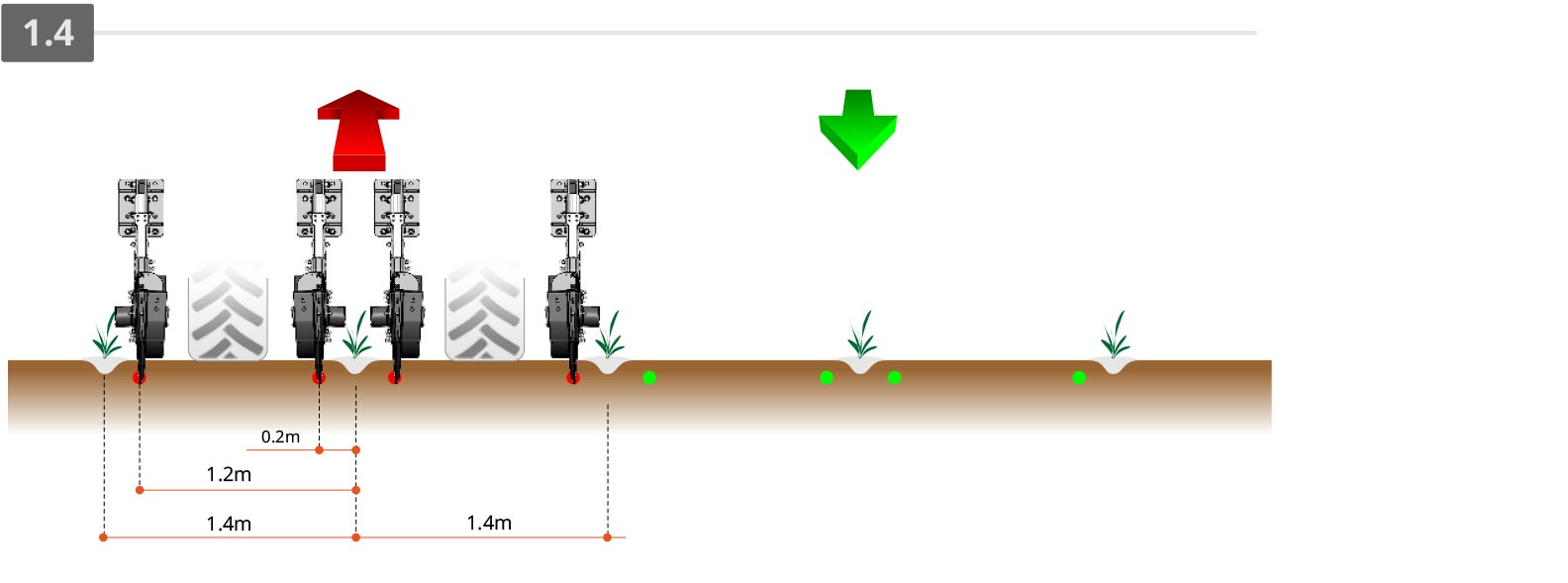

4 bodies - Single line - Espaçamento 1.4m - Chassis 3m
Duas linhas por passada - Fertilizante nas duas laterais da soqueira.

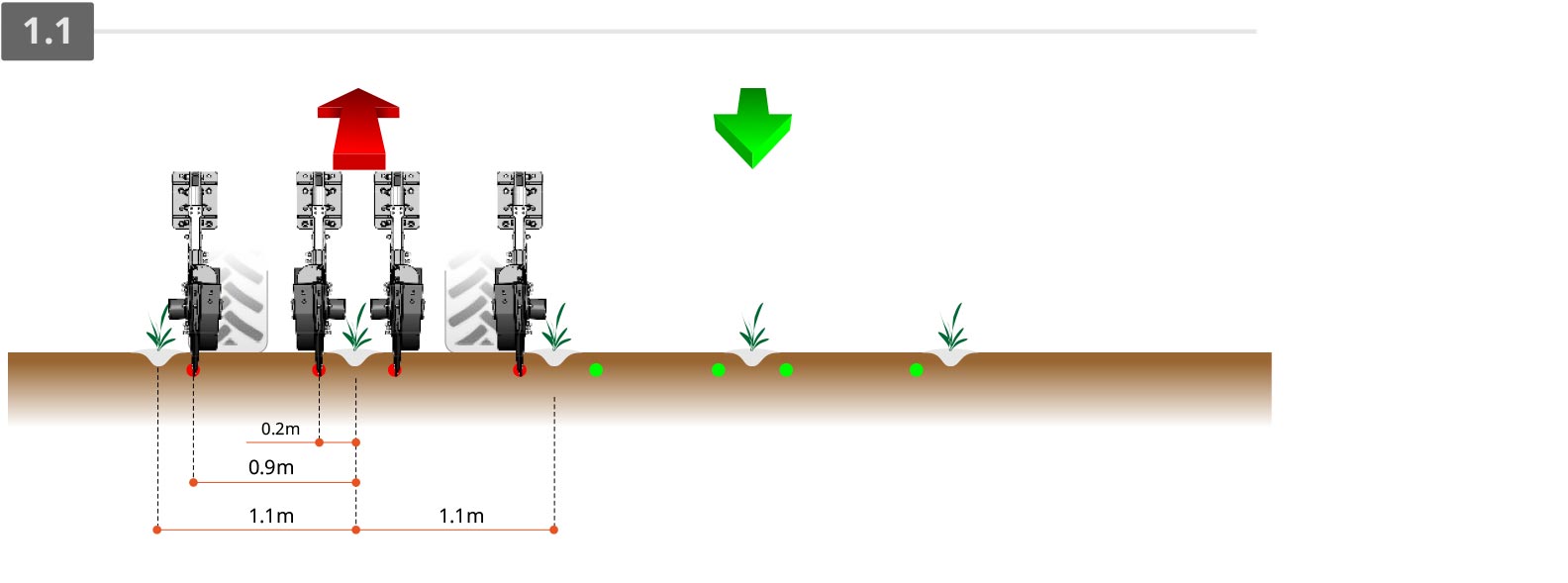

4 bodies - Single line - Espaçamento 1.1m - Chassis 3m
Duas linhas por passada - Fertilizante nas duas laterais da soqueira.


*2-Outros espaçamentos nos consulte.


Downloads

Folder PDF


Fertilizing your cane in the right spot!

Capacidad de trabajo con hasta 20 cm de cobertura de malhoja.



Features

  • Height: 2,5 m
  • Width: 3.0 m (possible extension 3.6 m)
  • Weight: 1350 kg
  • Fertilizer type: Solid
  • Fertilizer load: 1000 kg
  • Fertilizer regulation (* 1): Manual valve
  • Depth of application: ~ 7 to 12 cm
  • Line spacing: 1.10 to 1.50 m (optional: up to 1.9 m)
  • Speed (max): 12 km/h
  • Fertimax bodies: 4 / 3 / 2
  • Tractor power: 120 hp
  • Coupling to the tractor: 3rd point - CAT III
  • Optional: (*1) Use of ISOMOTION technology for fixed or variable rate.
