Main features

• Hitch: three point to tractor with articulation
• Hooper volume: 6 to 8 tn.
• Fertilizer hooper volume: 1.000 kgs granular.
• Spraying tank volume: 600 lts with optional/additional 600 lts.
• Power required: +190HP.
• Tipo de surcador: de disco o de reja.
• Furrow opener system: (i) concave or straight discs, or (ii) “Hummingbird” type with automatic disarm
• Automatic control: only in self-driven version.
• Front wheels: 2 tires 10.5/65-16.
• Rear wheels: 4 tires 400/60-22.5
• Rear axle: tandem with self-levelling system for steep fields with 5% up to 15%.

Six tasks in one single pass

1. 1.

   Opens furrow with depth regulation up to 45 cms with Hummingbird type system or 25cms depth with disc opener type system.
   Watch video

2. 2.

   Distributes seed cane at adjustable fixed rate thanks to dosing system controlled by automatic rpm achieving the amount required at any speed and terrain.
   Watch video

3. 3.

   Sprays seed cane with liquids at a fixed rate. Liquids are able to be sprayed both during the falling in the slides and/or direct into the ground just before the covering.
   Watch video

4. 4.

   Distributes solid or liquid fertilizer at a fixed rate adjusting amount following the speed of work.

5. 5.

   Covers the seed cane with concave disc 18” allowing the use of the humid soil from the sides of the wall of the open furrow making a row with a sub-surfaced cover. Or else, using straight steel sheets allowing a bed form levelled to the ground.



6. 6.

   Sealing rolo avoiding air pockets, form of rolos upon client request (complete, barrel, etc).

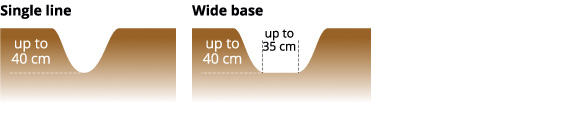

Type of furrow

Row distance

Covering forms
