Designed with commercial components.
Simple to operate and maintain using the least number of hydraulic components, with only five motors and five high-quality hydraulic cylinders, complying with NR12 safety standards.
The computer in the tractor cab is a fitted 7 "color screen easy to operate and understand- fully automates the operation of the planter and allows viewing of planting data in real time. A second 7" color screen projects 4 cameras feeds via Wi-Fi allowing the tractor operator to have full control of the operation at all times.
A higher working speed allows more hectares per working day, being able to plant in a range of 7 to 13 km / h. Disc system opens furrows with lower drag resistance compared to the traditional furrow opener systems.
The TT X2 is the only machine on the market with the option to selectively interrupt the flow of seed and inputs per row, a utility required at the end of the batch.

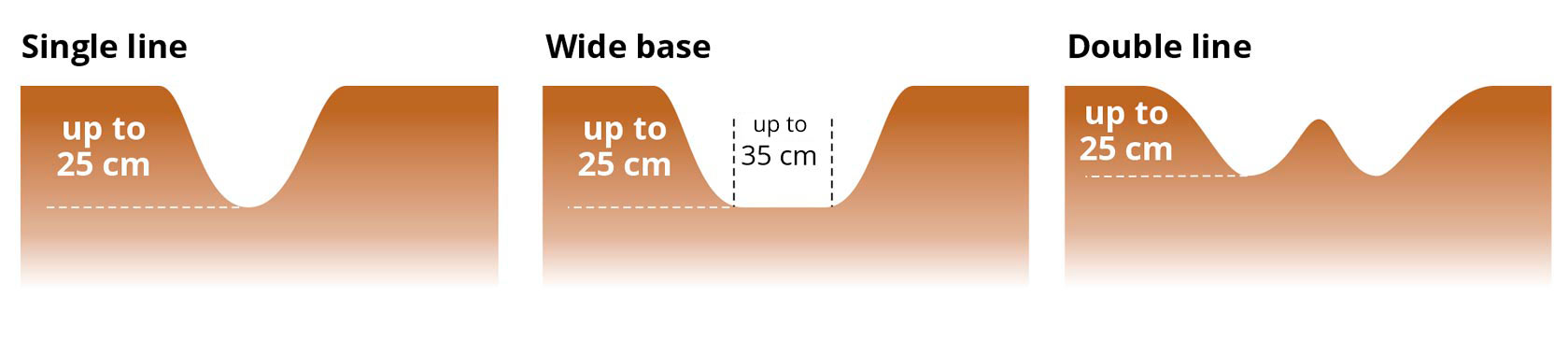

One of a kind developed to plant two rows:
- single line
- double line
- With versatility for spacing between 1.60 meters and 2.00 meters.
• Axle: two versions 3400 or 3800 mm
• Type of coupling: draw bar with pin hitch to the tractor.
• Billet loading capacity: from 8 to 9.5 tn.
• Solid fertilizer loading capacity: 1000 kg.
• Liquid loading capacity: 1000 liters.
• Power required: +230 HP.
• Open furrow type: two options
- double disc every row (4 total discs) for single or double line.
- one furrow opener with tyne every row (2 total moldboard bars) for single furrow.
• Type of cappers: discs.
• Control: automated.
• Front axle: 2 tires rolled 12/16 for depth adjustment
• Rear tandem axles: arranged in rocker arms with 4 high flotation 400 / 60-15.5 wheeled tires.
Opens two furrows per pass -either single or double line.
Fitted with two doser systems and automatic adjusting system to dose billets in every row individually. Dose is adjusted upon client requirements and with the possibility to be automatically controlled depending on working speed (fixed rate).
Sprays chemicals during billet flow through distributing slides or straight on the ground. Able to dose liquids at a fixed rate following tractor speed changes.
Doses solid fertilizer. Doses quantities indicated by the user at a fixed rate respecting the changes in the working speed of the tractor. It has four fertilization downspouts equipped with a fertilizer drop sensor, which announces to the operator of dosing failures, this system is coupled to manual section cutting.
Covers the seed with 24 "concave discs, which allow covering furrow low level, level or above level, depending on user needs and soil conditions.
One compacting roll per row, presses the cover to remove possible air pockets, achieving an ideal cover. Rolls can be whole or carambola type.
Linked to the automated system of the planter, it has the ability to calibrate the dose of solid fertilizer through the on-board computer located in the tractor cabin. The operator selects the parameters according to the fertilization required of his plantation and the TT X2 will be calibrated to make a fertilization at a fixed rate, which will dose the indicated amount of fertilizer regardless of the advance speed. Dosage capacity within the parameters required by international quality standards. Stainless steel hopper with 1250 l capacity for solid fertilizer with Fertisystem high precision dispensers (endless auger). Equipped with drop sensors that, in the event of dosing failures, triggers audible and visual alarms to the operator.
Equipped with a high efficiency spraying system with application rate control. By means of flow meters in the input line, it allows to control flows with high precision independent of the forward speed of the tractor, it will always apply within the parameters selected in the on-board computer located in the tractor cabin. Tank in thermoforming of 1000 l capacity, being able to use any nozzle for application.
All the functions of the TT X2 are controlled from the tractor cab, through exclusive software developed by TT. Automation provides precision on the parameters required by the user eliminating human error. It runs a constant operation avoiding failures when planting.
Main menu
Input parameterization
